Widening 4 - Mill and Overlay Explicit
Updated May 09, 2016
This article applies to:
- RoadEng Civil
- RoadEng Forestry
Mill & Overlay Explicit
Pavement mill, overlay and widening. Up to three shoulder layers. Explicit base and subbase widths.

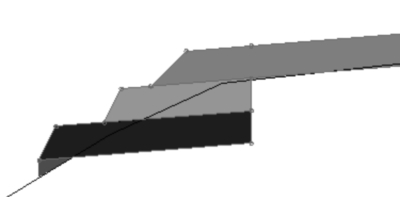

Typical Cross Section
Parameters
| ExistingACP_Offset | Existing ACP width, measured from centerline. | |
| NewACP_Offset | Existing ACP width, measured from centerline. | |
| ACPThick | Thickness of ACP. | |
| ACPSlope | Fill slope of the ACP layer. | |
| BaseThick | Thickness of base. | |
| BaseWidth | Width of base. | |
| BaseSlope | Slope of base. | |
| SubbaseThick | Thickness of subbase. | |
| SubbaseFillSlope | Fill slope of subbase layer. | |
| SubbaseWidth | Width of subbase | |
| CF_Probe_X | Horizontal offset to reference feature on existing pavement (use to calculate crossfall) | |
| CF_Probe_Y | Vertical offset to reference feature on existing pavement (use to calculate crossfall) |
